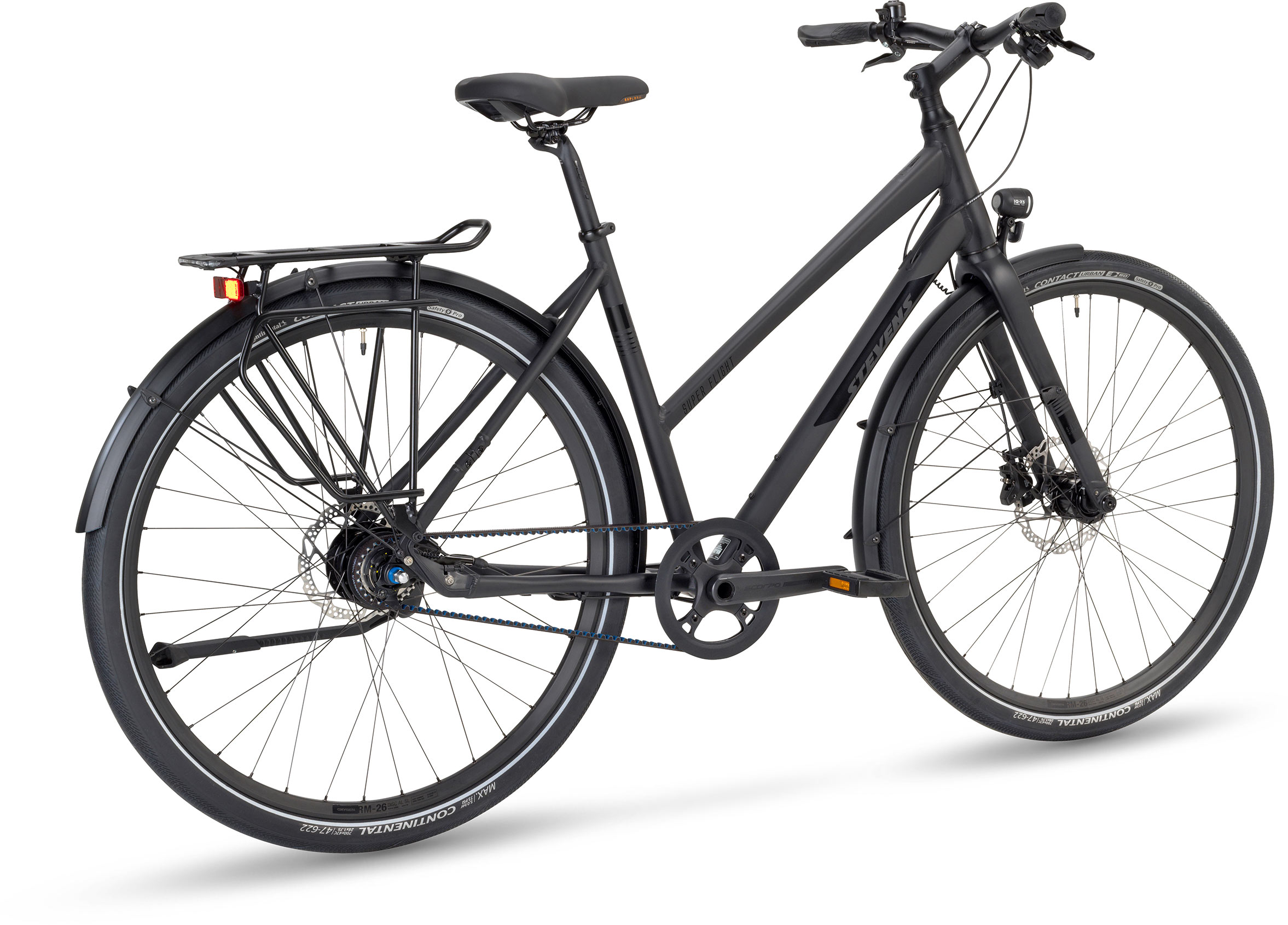

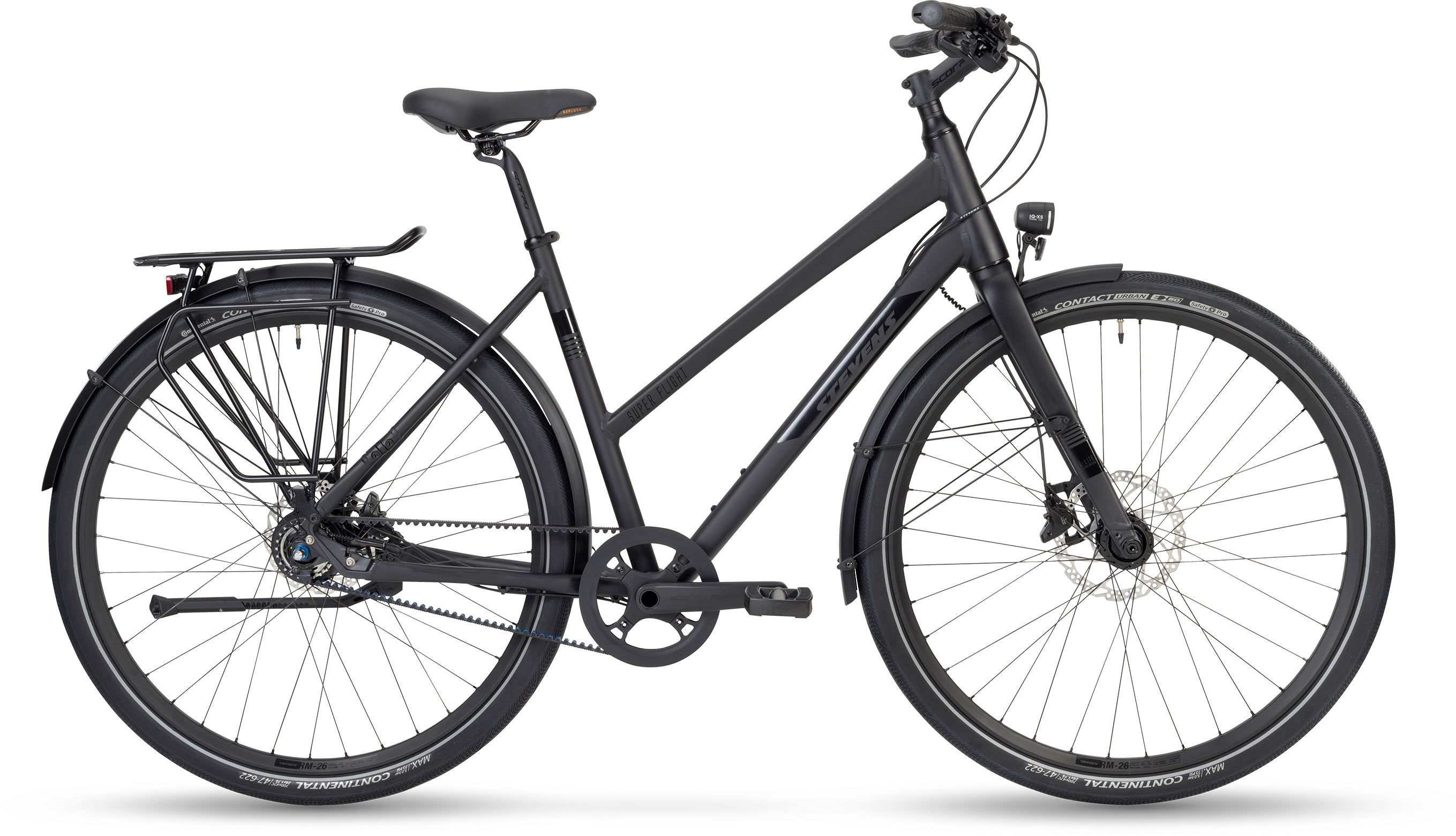

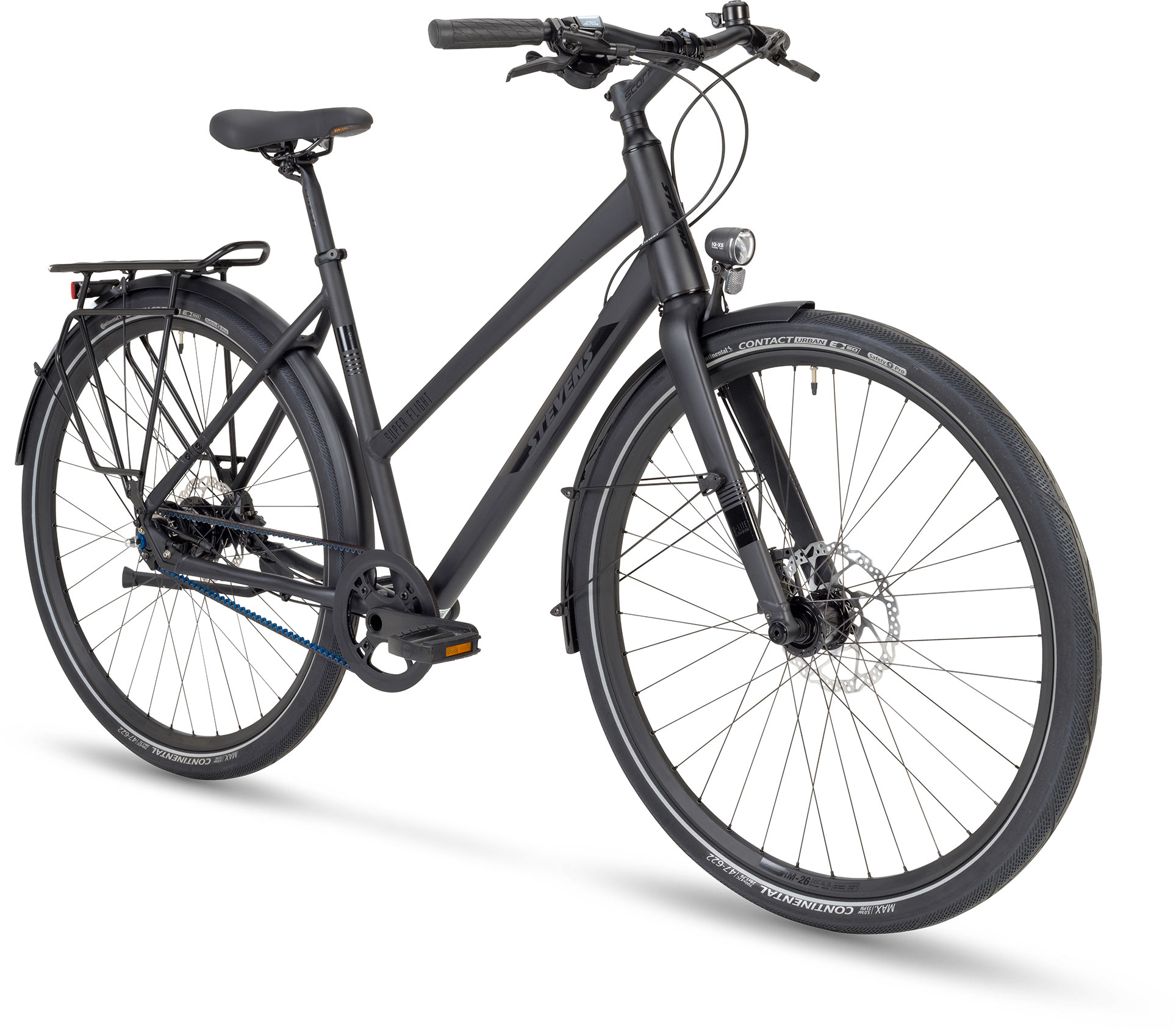

Stevens 2024 SUPER FLIGHT LT / Stealth Black 46cm / Stealth Black

Chassis

Frame

Aluminium 6061 TB

• O.L.D.: 135 mm
• Brake: postmount disc 6"
• BB: BSA 68 mm
• Cable routing: internal
• Fender + rack mounts
• Adjustable dropouts

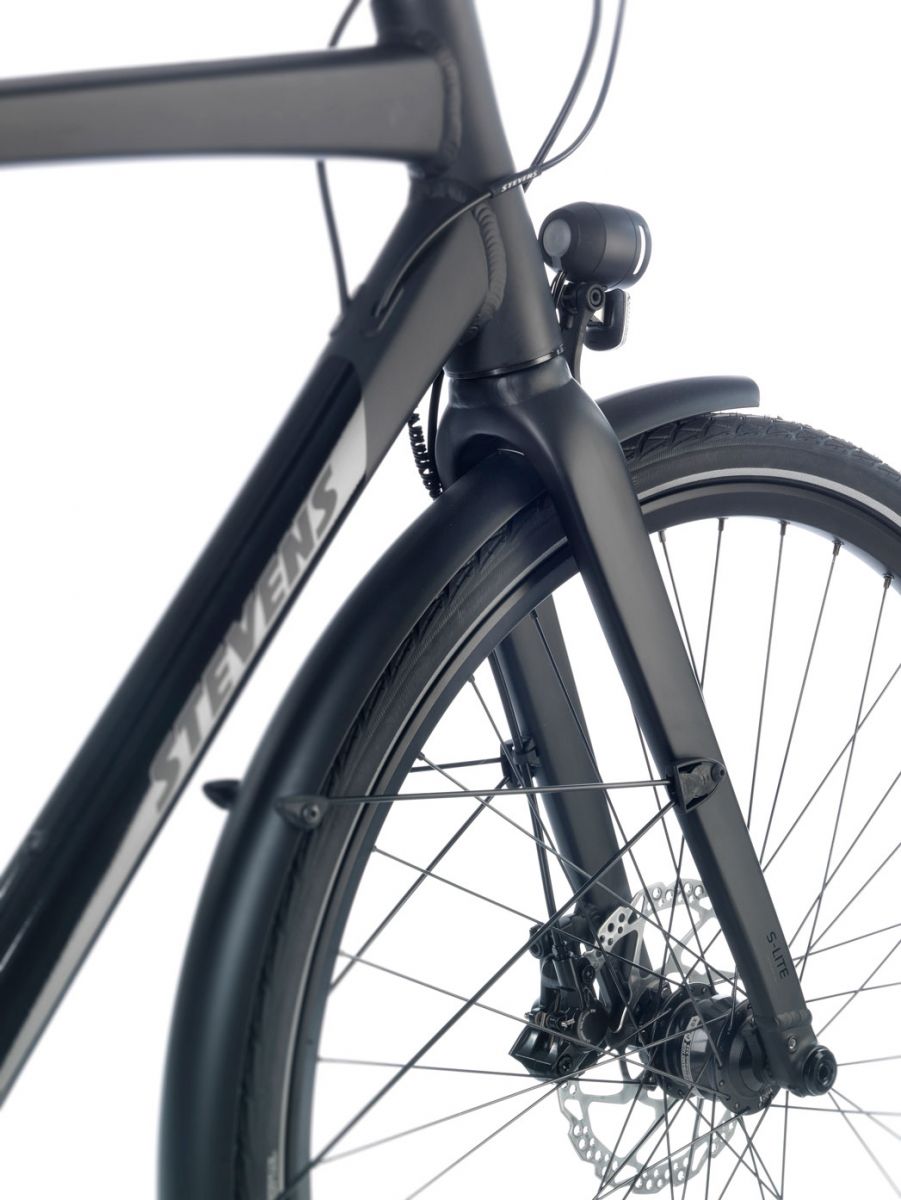

Fork

STEVENS S-Lite Aluminium

• Tapered Steerer 1 1/8" - 1 1/2"
• O.L.D.: 100 mm
• Brake: postmount disc 7"
• Fender + rack mounts

Headset

STEVENS AH Taper 1 1/8"-1 1/2"

• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS55/40

Brake front

Shimano BR-MT410

• Hydraulic disc brake

Brake rear

Shimano BR-MT410

• Hydraulic disc brake
• 2 pistons

Brake disc front

Shimano SM-RT54

• Rotor size: 180 mm
• Center-Lock

Brake disc rear

Shimano SM-RT54

• Rotor size: 160 mm
• Center-Lock

Drivetrain

Crankset

Oxygen Scorpo

• 50 T
• BB type: BSA 68 mm
• Chainguard

Chainring

Gates CDX chainring

• 50 T

Belt

Gates CDX Center Track Carbon Drive Belt

• Length: 122 T

Derailleur rear

Shimano Alfine

• SG-S7001-11
• 11-speed gear hub with freewheel
• Gear range: 409%
• Axle: 10x135 mm threaded

Cassette

Gates CDX Center Track sprocket

• 24 T

Pedals

ATB Alu Pro Reflex

Wheelset

Hubs front

Shimano DH-UR708-3D

• Hub dynamo
• Axle: QR15x100 mm

Rims

Oxygen RM-26 Disc SL

• ETRTO: 26 x 622

Tires

Continental Contact Urban

• Tire size: 47-622
• Foldable
• Safety Pro
• PureGrip Compound
• Reflective stripes

Cockpit

Handlebar

Oxygen Scorpo

• Width: 630 mm
• Backsweep: 15°
• Rise: 20 mm
• Clamp: 31.8 mm

Stem

Oxygen Scorpo

• Handlebar clamp: 31.8 mm
• Angle: 17°

Saddle

Selle Royal Explora Female

Seatpost

Oxygen Scorpo

• Length: 320 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

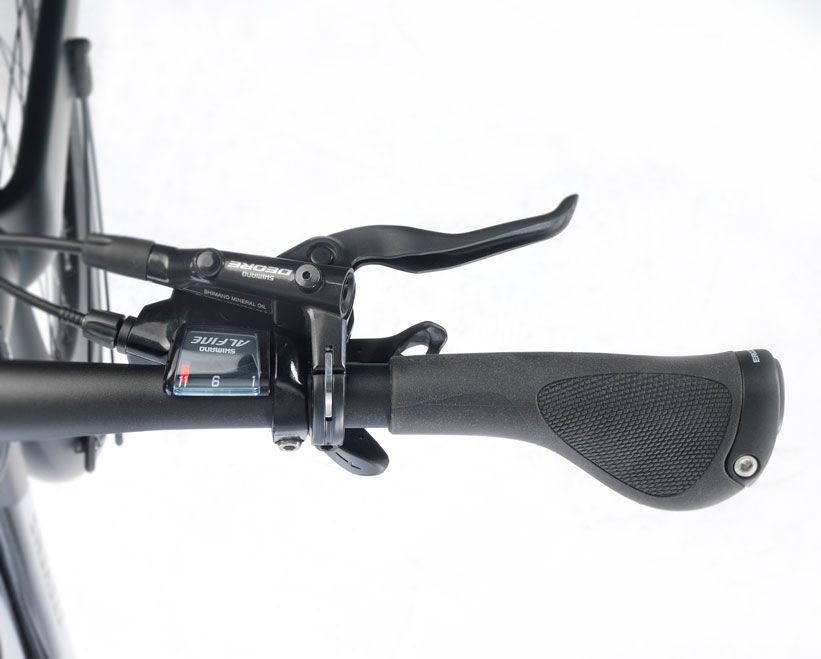

Shift lever right

Shimano Alfine 11

• SL-S700
• 11-speed

Brake lever

Shimano BL-M4100

• 2 finger

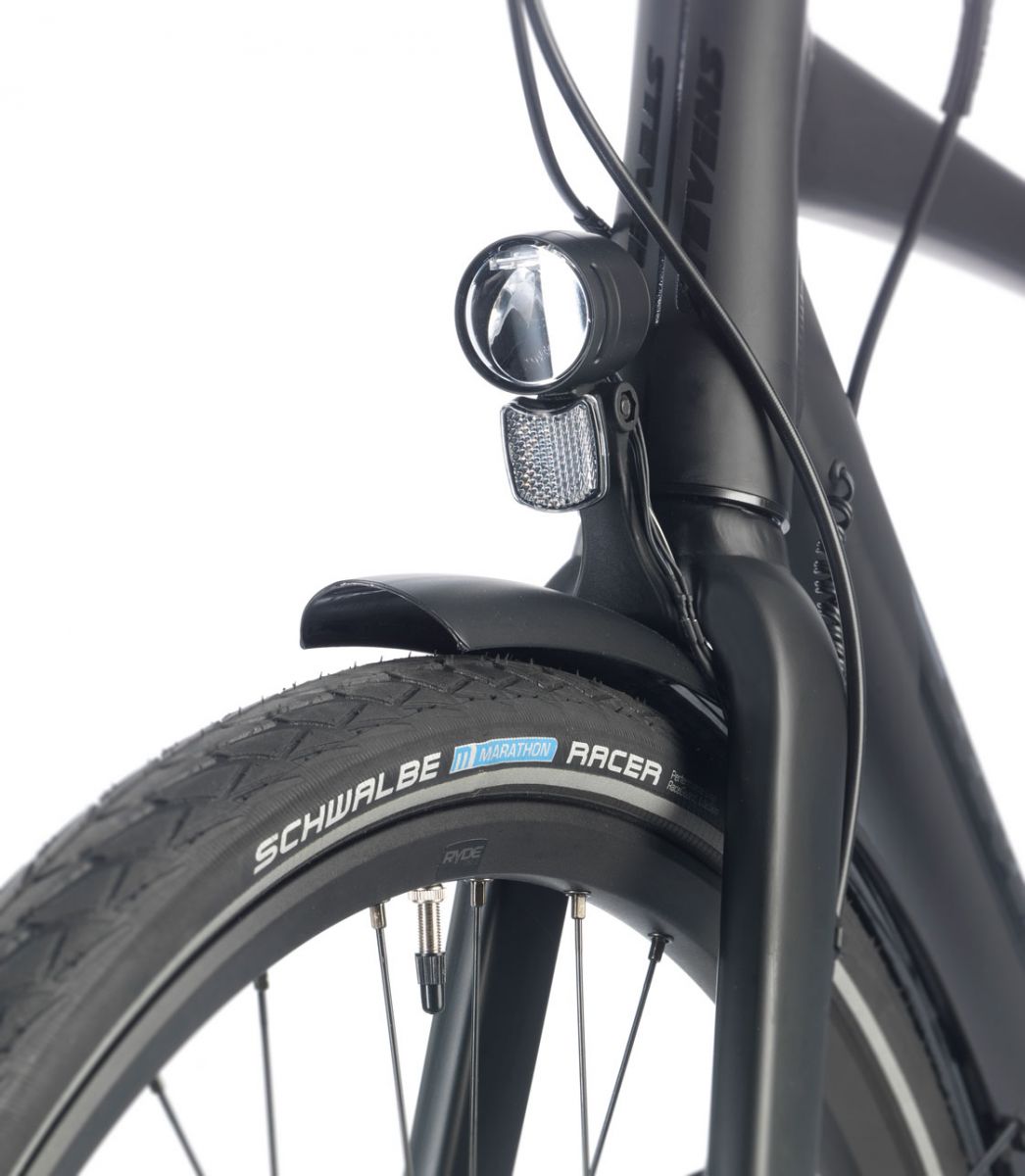

Headlight

B+M IQ-XS Friendly T

• Illuminance: 80 lux
• Close range light
• Daylight function

Taillight

B+M Shine Evo

• Integrated taillight

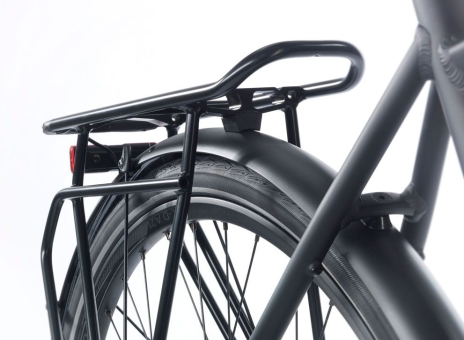

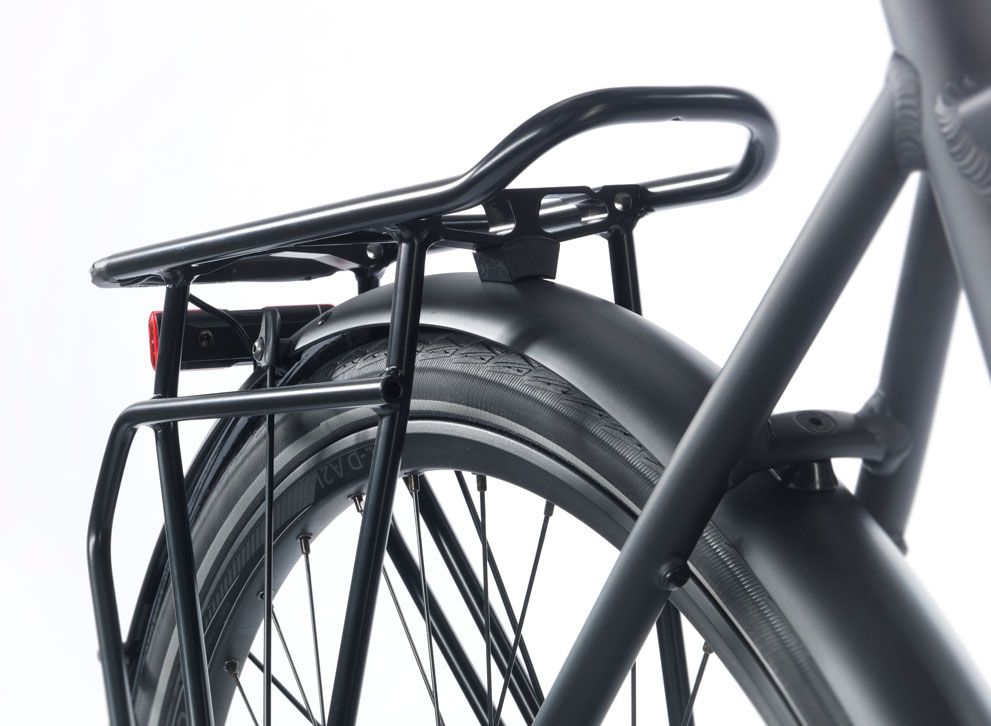

Carrier

Racktime Shine Evo RTA rear rack

• Rear rack mount: RTA
• System: SNAP IT

Mudguards

SKS mudguards

Kickstand

Pletscher Comp kickstand

• Kickstand mount: KSA 18

Bell

STEVENS D85 bell

Data

Weight

14,4 kg

Laden weight

130 kg

Color

Stealth Black

Sizes

LT 46, 50, 54 cm
