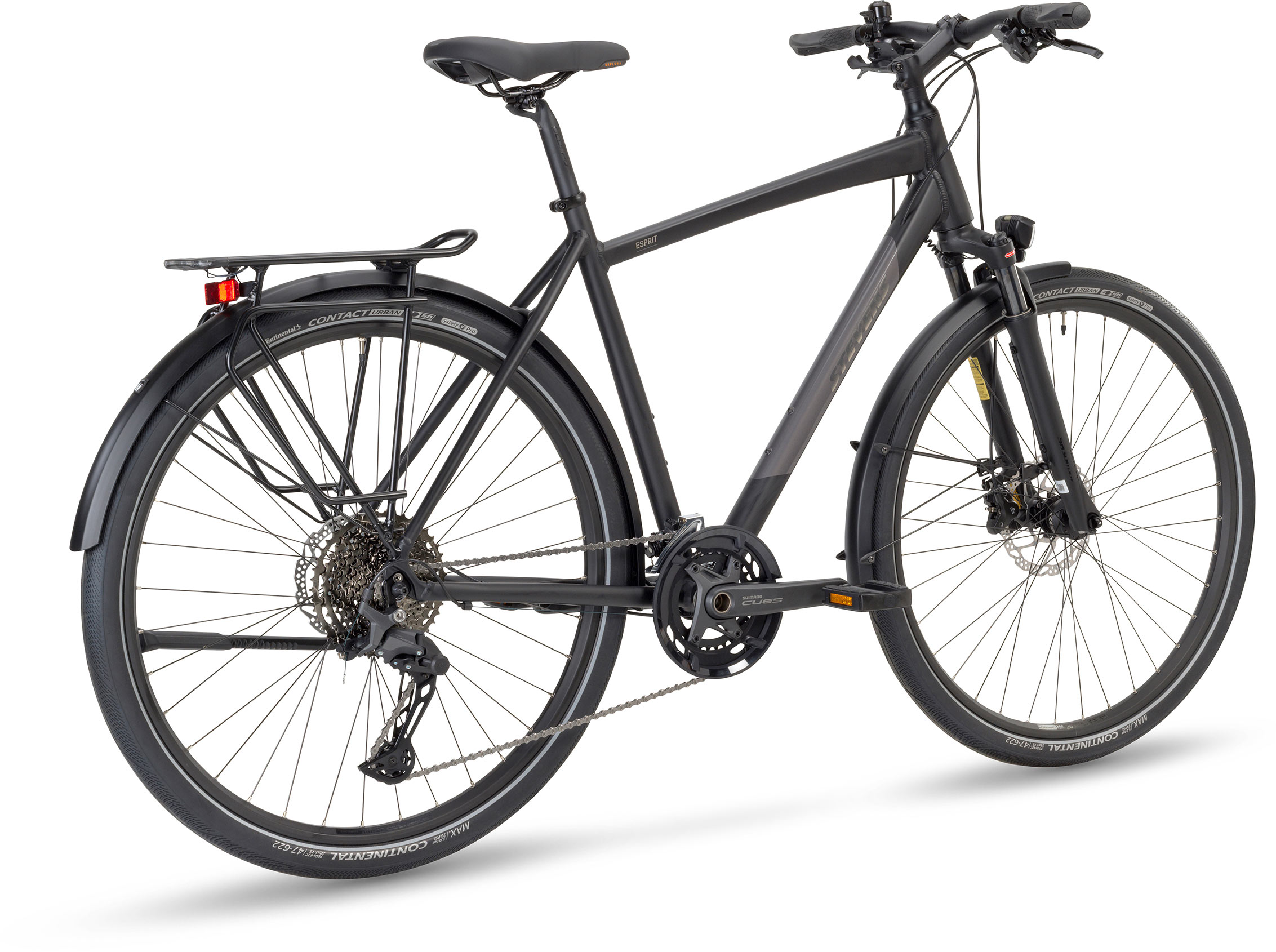

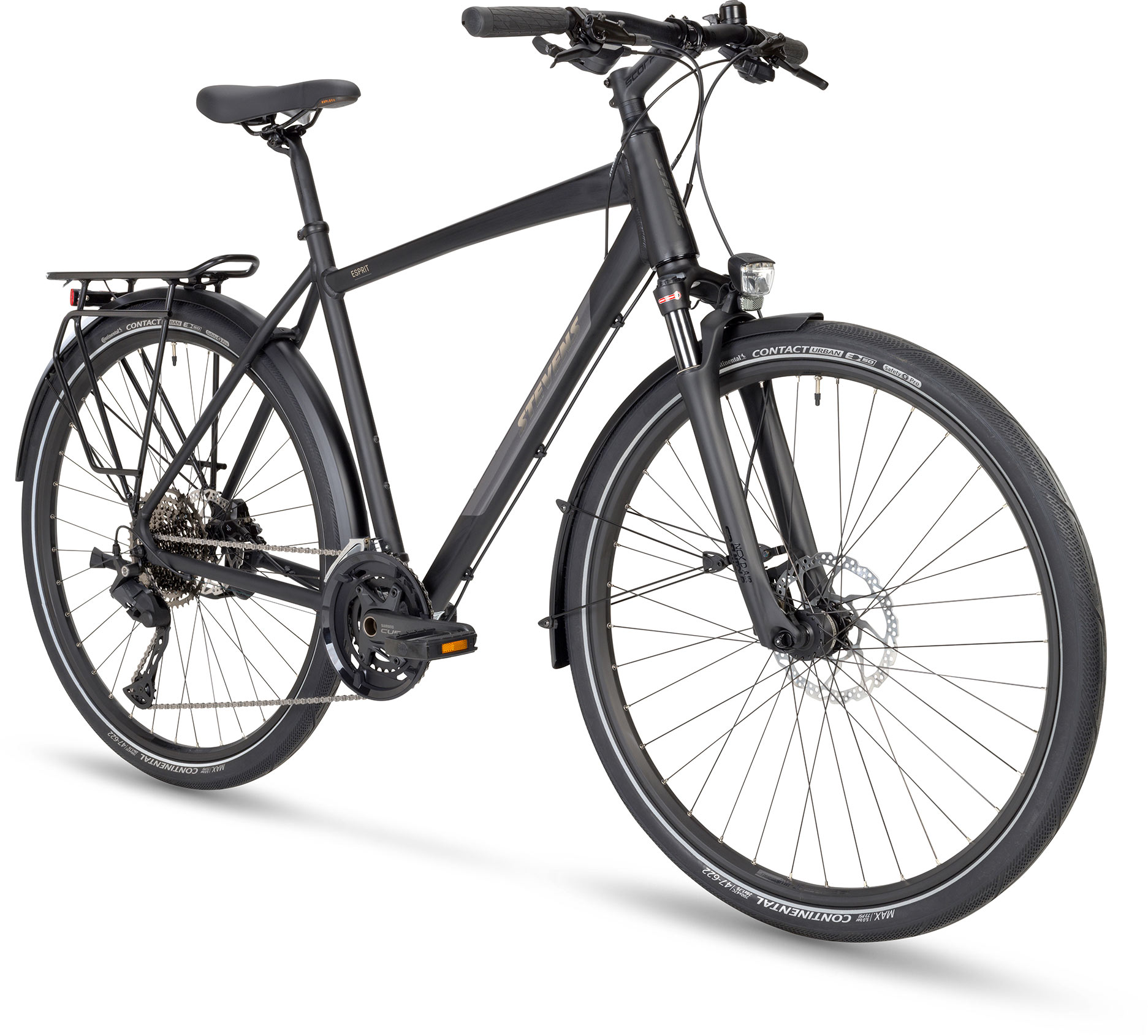

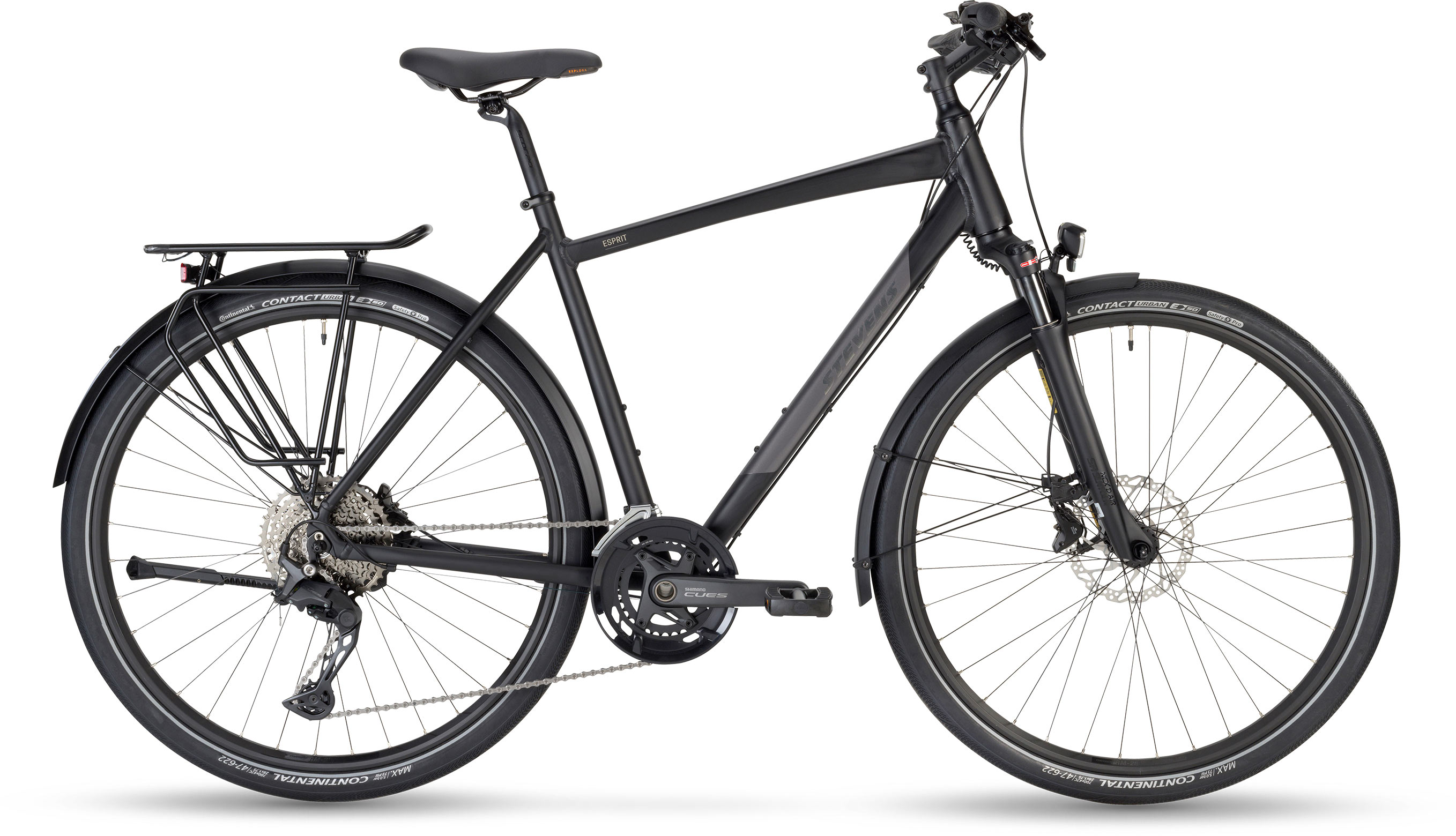

Stevens 2024 ESPRIT HT Gen.2 / Stealth Black 52cm / Stealth Black

Chassis

Frame

Aluminium 6061 TB

• O.L.D.: 135 mm
• Brake: postmount disc 6"
• BB: BSA 73 mm
• Front derailleur mount: clamp
• Cable routing: internal (shifting)/external (brake)
• Fender + rack mounts

Fork

SR Suntour NCX-D Air LO

• Travel: 63 mm
• Air suspension
• Lockout
• Tapered Steerer 1 1/8" - 1 1/2"
• O.L.D.: 100 mm
• Brake: postmount disc 6"
• Fender mounts

Headset

STEVENS AH Taper 1 1/8"-1 1/2"

• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS55/40

Brake front

Shimano BR-MT410

• Hydraulic disc brake

Brake rear

Shimano BR-MT410

• Hydraulic disc brake

Brake disc front

Shimano SM-RT54

• Rotor size: 180 mm
• Center-Lock

Brake disc rear

Shimano SM-RT54

• Rotor size: 160 mm
• Center-Lock

Drivetrain

Crankset

Shimano CUES U6000

• Shimano FC-U6010-2
• 46-32 T
• Hollowtech II

Derailleur front

Shimano CUES U6000

• FD-U6010-LL3
• 2-speed

Derailleur rear

Shimano CUES U6000 Shadow

• RD-U6020-11 SGS
• 11-speed
• Total capacity: 48 T

Chain

Shimano CN-LG500

• LINKGLIDE

Cassette

Shimano CS-LG400-11

• 11-speed
• Combination: 11-13-15-17-20-23-26-30-34-39-45 T

Pedals

ATB Alu Pro Reflex

Wheelset

Hubs rear

Formula CL-26

• Axle: QR9x135 mm

Hubs front

Shutter Precision PL-8

• Hub dynamo
• Axle: QR9x100 mm

Rims

Oxygen RM-26 Disc

• ETRTO: 26 x 622

Tires

Continental Contact Urban

• Tire size: 47-622
• Foldable
• Safety Pro
• PureGrip Compound
• Reflective stripes

Cockpit

Handlebar

Oxygen Scorpo

• Width: 640 mm
• Backsweep: 9°
• Rise: 15 mm
• Clamp: 31.8 mm

Stem

Oxygen Scorpo

• Handlebar clamp: 31.8 mm
• Angle: 17°

Saddle

Selle Royal Explora Male

Seatpost

Oxygen Scorpo

• Length: 320 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

Shift lever left

Shimano CUES U6000

• SL-U6000-L
• 2-speed

Shift lever right

Shimano CUES U6000

• SL-U6000-11R
• 11-speed

Brake lever

Shimano BL-MT402-3A

Headlight

B+M IQ Myc Friendly T Senso+

• Illuminance: 50 lux
• Close range light
• Daylight function

Taillight

B+M Shine Evo

• Integrated taillight

Carrier

Racktime Shine Evo RTA rear rack

• Rear rack mount: RTA
• System: SNAP IT

Mudguards

SKS mudguards

Kickstand

Pletscher Comp kickstand

• Kickstand mount: KSA 40

Bell

STEVENS D85 bell

Data

Weight

15.2 kg

Laden weight

130 kg

Color

Stealth Black

Sizes

HT 48, 52, 55, 58, 61, 64 cm
