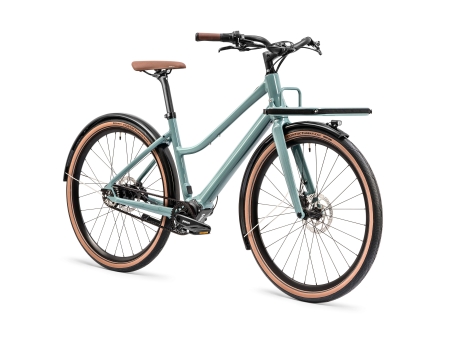

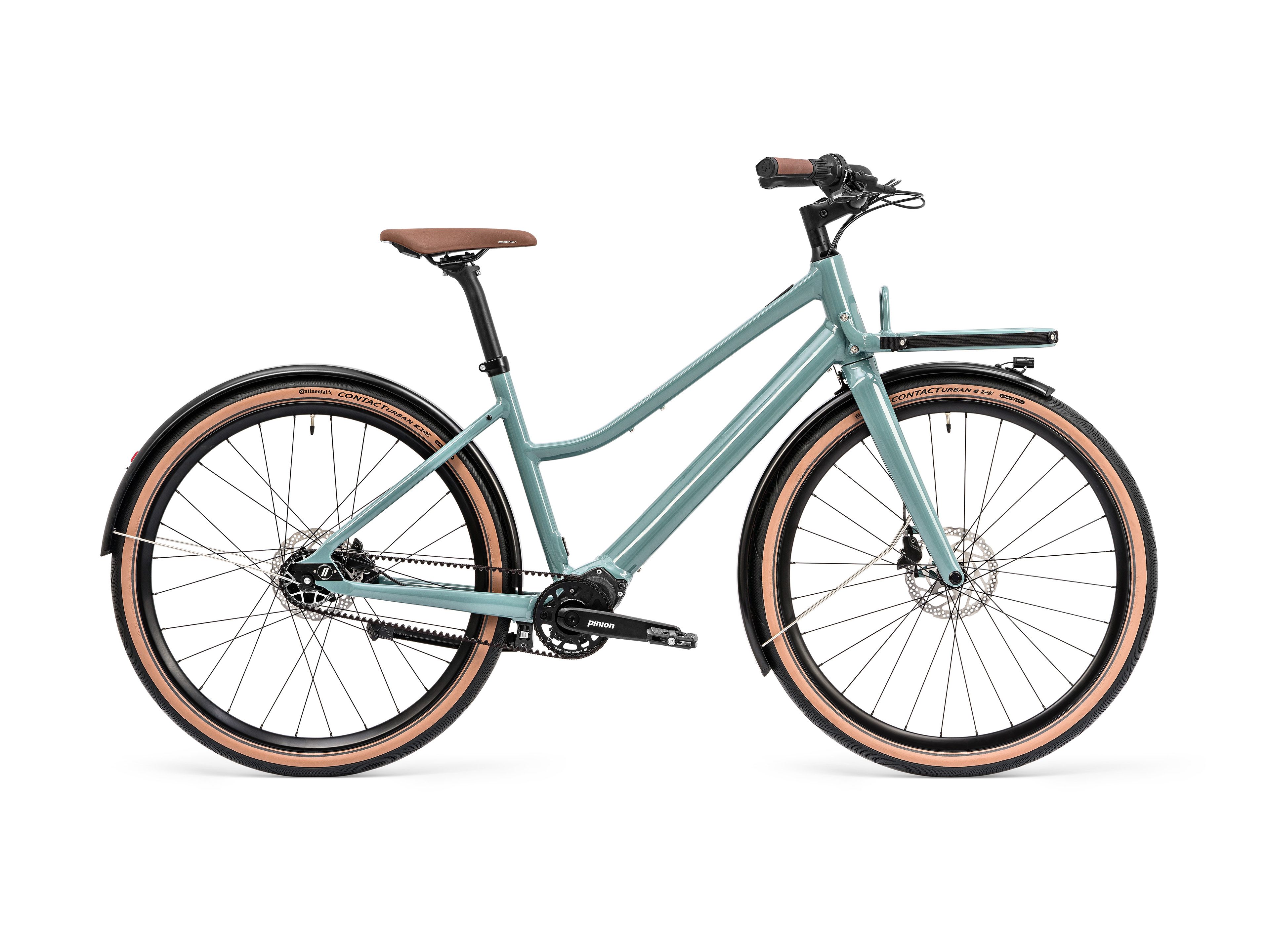

Schindelhauer EMILIA VI/IX S (45cm) | salbeigrün | 6-Gang Pinion

The electrified all-rounder

Comfortable, functional and powerful of the reduced design language - Emilia as the better half of Emil is a fully equipped e-bike with all the advantages of an all-rounder and with lower frame entry. The inconspicuous 250-watt motor integrated in the rear hub and the 250Wh battery placed in the down tube offer enduring riding fun thanks to reliable components from Mahle. Control and individual riding profiles are easily accessible with just the push of a button on the frame or via app.

Full equipment

Emilia's urge to move can be optimally brought to the road by means of Pinion's sequential transmission with a choice of 6 or 9 gears. Developed by former Porsche engineers, even precise gear jumps are possible, whether stationary or on the move. Another highlight is the frame-mounted front rack with clever tensioning strap system. Even larger loads can be transported safely and without affecting the handling. For best visibility at night, the LightSKIN Ultra-Mini-Light U2E, the world's smallest StVZO bicycle front light, is integrated on the aluminum profile mudguard.

Relaxed in everyday life

Thanks to the adapted Schindelhauer frame geometry with longer head tube and shorter stem, Emilia has a comfortable riding position. Cobblestone roads and rough park paths become the new favorite shortcut thanks to the large-volume tires. With the Gates Carbon Drive timing belt, three to four times the mileage is possible compared to a chain - with the same efficiency, but less maintenance and noise. Oiling and greasing are as much a thing of the past as dirty trouser legs.

So Hannah offers a complete package of equipment that you do not have to worry about. . .

Frame	Aluminum (AL6061-T6), aero shape tubeset, triple butted, forged PINION bridge, forged dropout with sled tensioning system and Schindelhauer - Belt Port, bolt-on points for frame-mounted luggage rack, smoothed welds, internal cable routing
Fork	Hydroforming aluminum fork (tapered), internal cable routing, disc brake Post Mount, 15 mm thru axle.
Steerer set	Acros - ICR 1.5''
Motor	Mahle-ebikemotion - Motor HUB Drive M1, 250 W power, 40 Nm torque, support up to 25 km/h.
Battery	Mahle-ebikemotion - Intube battery with about 250 Wh energy content.
Board computer	Mahle-ebikemotion - iWoc ONE with Bluetooth and ANT+.
Drive	Gates Carbon Drive CDX, front 39T, rear 34T/28T, timing belt 118T/115T.
Shift	Pinion - transmission unit, C-Line 6-/9-speed (XR)
Inner bearing	Pinion
Crankset	Pinion
Pedals	VP - plastic with GripTape, industrial bearings.
Stem	Satori - Stealth, aluminum
Handlebar	Schindelhauer - CITY, aluminum
Saddle	Schindelhauer
Saddle post	Schindelhauer
Grips	Schindelhauer
Wheels	Schindelhauer - High flange front hub Disc, ebikemotion motor HUB Drive M1, Alexrims - DP23 27.5" rims, Sapim spokes, 3-fold and 1-fold crossed spoked.
Brakes	Shimano - MT200 disc brake (hydraulic) 160 mm
Tires	WTB - Horizon 47-584, with reflective stripes.
Weight	17.6 kg (6-speed)/17.9 kg (9-speed)
Total weight	130 kg (bike + rider + luggage)
Mudguards	Curana - Apollo (aluminum profile mudguards).
Luggage carrier	Schindelhauer - aluminum, frame fixed, with VarioStrap system, suitable for Ortlieb Rack-Lock.
Lighting	LightSKIN Ultra-Mini-Light U2E front and ILU jr. rear.
Other features	Stand mounting possible Bottle or lock holder mounting and frame lock possible

All information is supplied by the manufacturer and is not guaranteed! In rare cases there may be subsequent changes to the specification.
