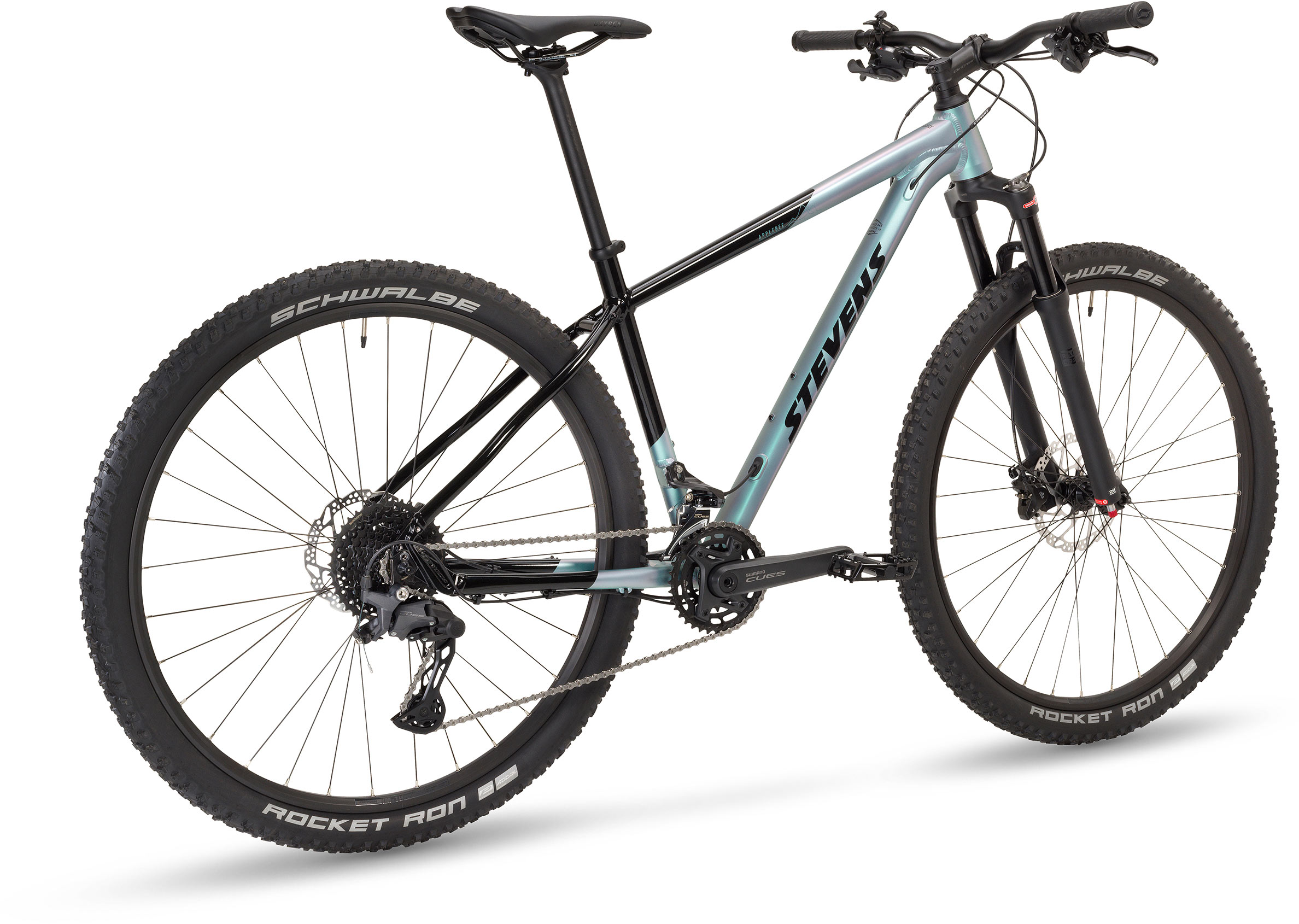

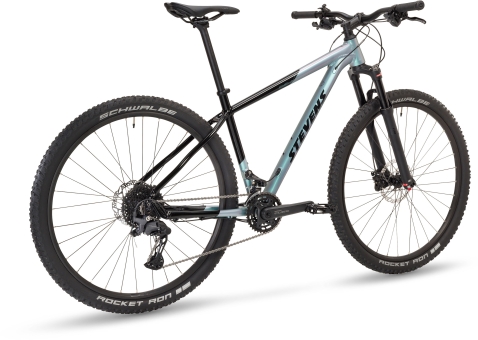

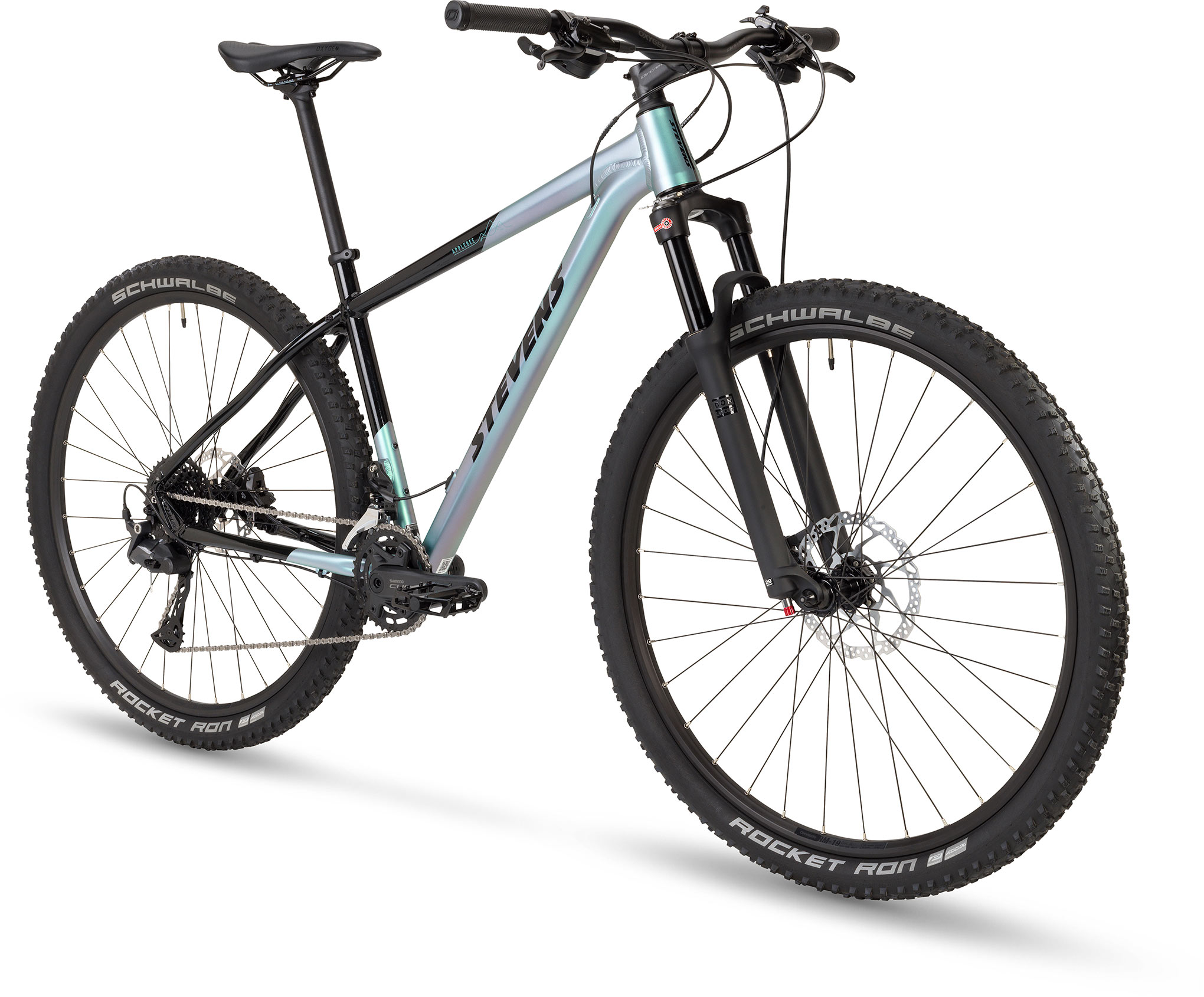

Stevens 2025 APPLEBEE / Galactic Black 16" (27.5") / Galactic Black

Chassis

Frame

Aluminium 6061 TB

• O.L.D.: 135 mm
• Brake: IS disc
• BB: BSA 73 mm
• Front derailleur mount: direct mount (high)
• Cable routing: internal (shifting)/external (brake)
• Rack mounts

Fork

SR Suntour Raidon XC RL-R Air

• Travel: 100 mm
• Air suspension
• Remote Lockout
• Tapered Steerer 1 1/8" - 1 1/2"
• O.L.D.: 100 mm
• Brake: postmount disc 6"

Headset

STEVENS MTB Taper 1 1/8"-1 1/2"

• Upper bearing cup: ZS44/28.6
• Lower bearing cup: ZS55/40

Brake front

Shimano BR-MT410

• Hydraulic disc brake
• 2 pistons

Brake rear

Shimano BR-MT410

• Hydraulic disc brake
• 2 pistons

Brake disc front

Shimano SM-RT54

• Rotor size: 180 mm
• Center-Lock

Brake disc rear

Shimano SM-RT54

• Rotor size: 160 mm
• Center-Lock

Drivetrain

Crankset

Shimano CUES U6000

• Shimano FC-U6000-2
• 36-22 T
• 2-Piece

Derailleur front

Shimano CUES U6000

• FD-U6000-D
• 2-speed

Derailleur rear

Shimano CUES U6000 Shadow

• RD-U6020-10 SGS
• 10-speed
• Total capacity: 44 T

Chain

Shimano CN-LG500

• LINKGLIDE

Cassette

Shimano CS-LG300-10

• 10-speed
• Combination: 11-13-15-17-20-23-26-30-34-39 T

Pedals

ATB Pro Reflex

Wheelset

Hubs rear

Formula CL-52

• Axle: QR5x135 mm

Hubs front

Formula CL-51

• Axle: QR5x100 mm

Rims

Oxygen RM-M19

• ETRTO: 27.5": 19 x 584 | 29": 19 x 622

Tires

Schwalbe Rocket Ron Performance

• Tire size: 27.5": 57-584 | 29": 57-622
• Foldable
• ADDIX Compound

Cockpit

Handlebar

Oxygen Driver

• Width: 740 mm
• Backsweep: 9°
• Rise: 25.4 mm
• Clamp: 31.8 mm

Stem

Oxygen Driver

• Handlebar clamp: 31.8 mm
• Angle: 6°

Saddle

Oxygen Havoc

Seatpost

Oxygen Driver

• Length: 350 mm
• Diameter: 27.2 mm
• Insertion depth: min. 100 mm

Shift lever left

Shimano CUES U6000

• SL-U6000-L
• 2-speed

Shift lever right

Shimano CUES U6000

• SL-U6000-10R
• 10-speed

Brake lever

Shimano BL-MT401

• 2 finger
• Aluminium lever

Data

Weight

27.5" 13.1 kg | 29" 13.4 kg

Laden weight

115 kg

Color

Galactic Black

Sizes

27.5" - 16" | 29" - 18", 20", 22"
