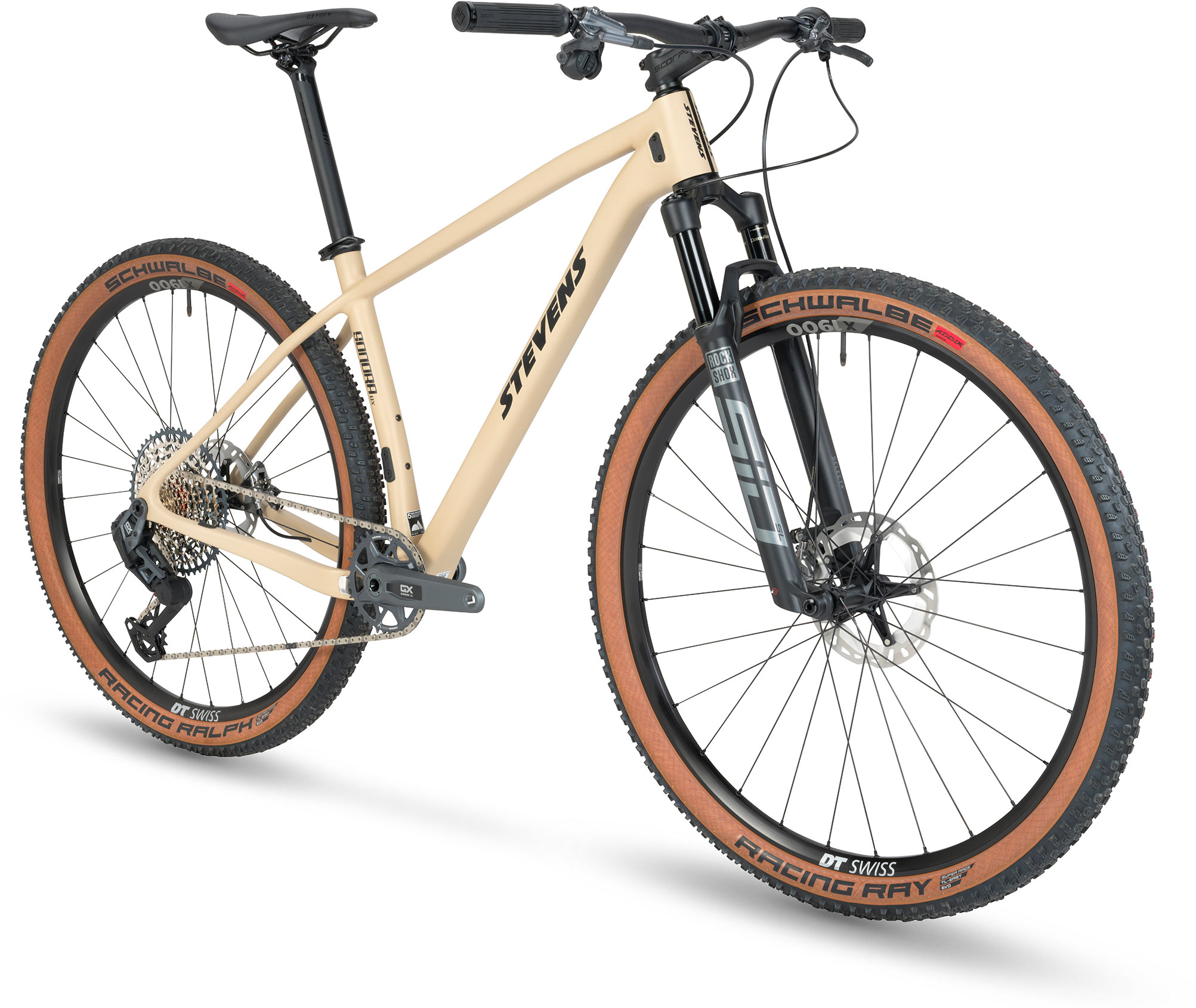

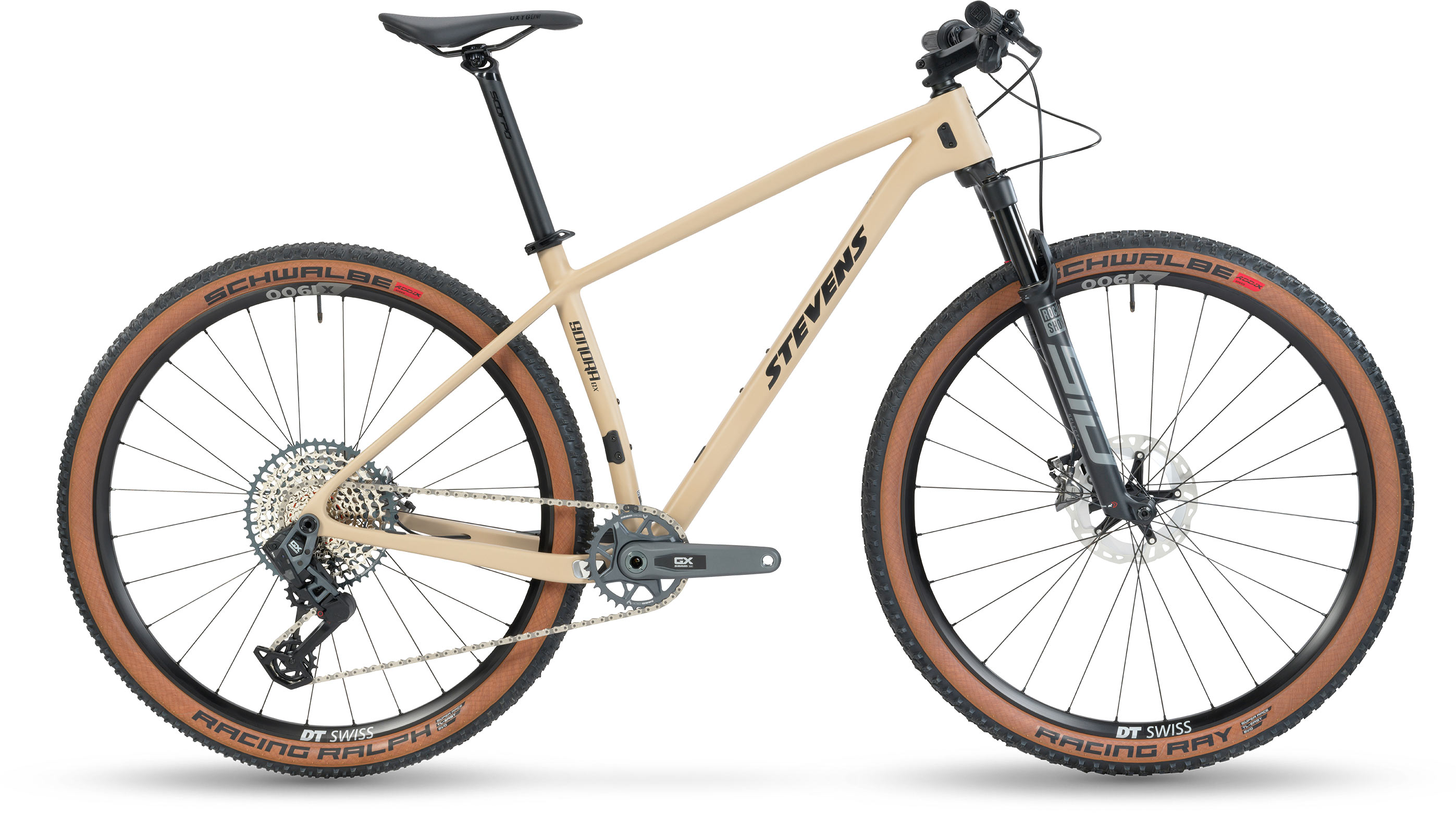

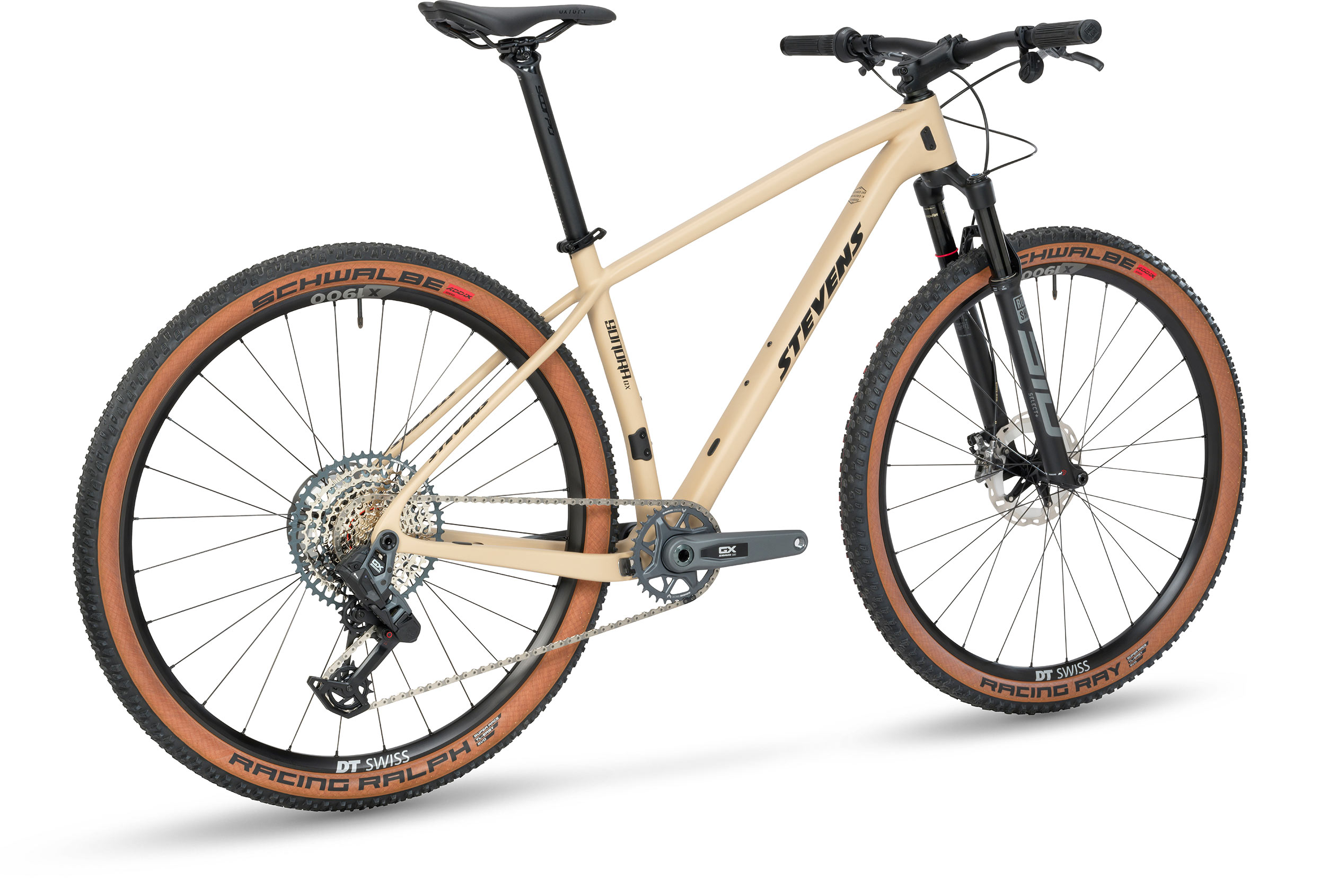

Stevens 2024 SONORA GX AXS 29" Gen.2 / Sandstone 16" / Sandstone

Carbon hardtail with World Cup-proven handling: friction-optimised RockShox SID Select, SRAM GX AXS wireless shifting, Shimano XTR M9100, 740 mm handlebar width for maximum control and DT Swiss X 1900 wheelset result in a bike that can win any race.

Only the best is good enough for this top-of-the-range carbon hardtail MTB. Precise shifting even under heavy loads is just as much a given as the necessary traction for all your adventures. This is ensured by the friction-optimised RockShox SID Select+ air suspension fork – which can be locked out in no time at all using the Twistlock Remote directly from the handlebars if necessary. For even more efficiency on the mountain and in the final sprint to the finish line.

Product number: 116625

16" / Sandstone

Bicycle is available in external warehouse, delivery time approx. 4-10 business days

18" / Sandstone

Bicycle is available in external warehouse, delivery time approx. 4-10 business days

20" / Sandstone

Bicycle is available in external warehouse, delivery time approx. 4-10 business days

22" / Sandstone

Bicycle is available in external warehouse, delivery time approx. 4-10 business days

3.399,00€*

3.999,00€*

Bicycle is available in external warehouse, delivery time approx. 4-10 business days

Auf die Merkliste Questions about product

Bike category

Mountainbike

Color

gold

Drivetrain system

Kette

Frame material

Carbon

Gear type

Kettenschaltung

Gears

12

Lighting

ohne

Manufacturer

Stevens

Manufacturer color

Sandstone

Product category

Bicycles

Rahmengröße

16"

Suspension

Federgabel

Tire width

57

Carbon hardtail with first-class frame details and World Cup worthy handling
Friction-optimised RockShox SID Select+ air suspension fork
Precise, wireless SRAM GX AXS radio gearshifting
Proven DT Swiss X 1900 wheelset
740 mm handlebar width for maximum control

Chassis

Frame

Carbon SL HMF

O.L.D.: 148 mm
Brake: postmount disc 6"
BB: Pressfit BB92
Cable routing: internal
Cable routing: internal

Fork

RockShox SID SL Select+

Travel: 100 mm
Air suspension
Lockout
Tapered Steerer 1 1/8" - 1.5"
O.L.D.: 110 mm
Brake: postmount disc 6"

Headset

STEVENS MTB Taper 1 1/8"-1 1/2"

Upper bearing cup: IS42/28.6
Lower bearing cup: IS52/40

Brake front

Shimano XTR

Hydraulic disc brake
2 pistons

Brake rear

Shimano XTR

BR-M9100
Hydraulic disc brake
2 pistons

Brake disc front

Shimano RT-MT800

Rotor size: 180 mm
Center-Lock

Brake disc rear

Shimano RT-MT800

Rotor size: 160 mm
Center-Lock

Drivetrain

Crankset

SRAM GX Eagle DUB

FC-GX-D1
34 T
BB type: Press Fit MTB 89/92 mm
Boost chain line

Derailleur rear

SRAM GX Eagle Transmission

RD-GX-E-B1
12-speed
AXS
Total capacity: 52 T

Chain: SRAM GX Eagle Transmission

Cassette

SRAM XS 1275 Eagle

12-speed
Combination: 10-12-14-16-18-21-24-28-32-36-42-52 T

Wheelset

System wheel front

DT Swiss X 1900 Spline

Axle: QR15x110 mm

System wheel rear

DT Swiss X 1900 Spline

Axle: QR12x148 mm

Tire front

Schwalbe Racing Ray Evolution

Tire size: 57-622
Foldable
ADDIX Speed compound
LiteSkin
Tubeless Easy

Tire rear

Schwalbe Racing Ralph Evolution

Tire size: 57-622
Foldable
ADDIX Speed compound
LiteSkin
Tubeless Easy

Tubes

Schwalbe Aerothan

SV19E
54/62-622
Valve-length 40 mm

Cockpit

Handlebar

Oxygen Scorpo MTB

Width: 700 mm
Backsweep: 9°
Rise: 15 mm
Clamp: 31.8 mm

Stem

Oxygen Scorpo MTB

Handlebar clamp: 31.8 mm
Angle: 5°

Saddle: Oxygen Havoc

Seatpost

Oxygen Scorpo MTB

Length: 380 mm
Diameter: 30.9 mm
Insertion depth: min. 100 mm

Shift lever right

SRAM AXS POD Controler

EC-AXS-POD-B1

Brake lever: Shimano BL-M9100

Data

Weight: 9.9 kg

Laden weight: 115 kg

Color: Sandstone

Sizes: 29" - 16", 18", 20", 22"
