M (48cm) - graphitschwarz
Bicycle is available in external warehouse, delivery time approx. 4-10 business days

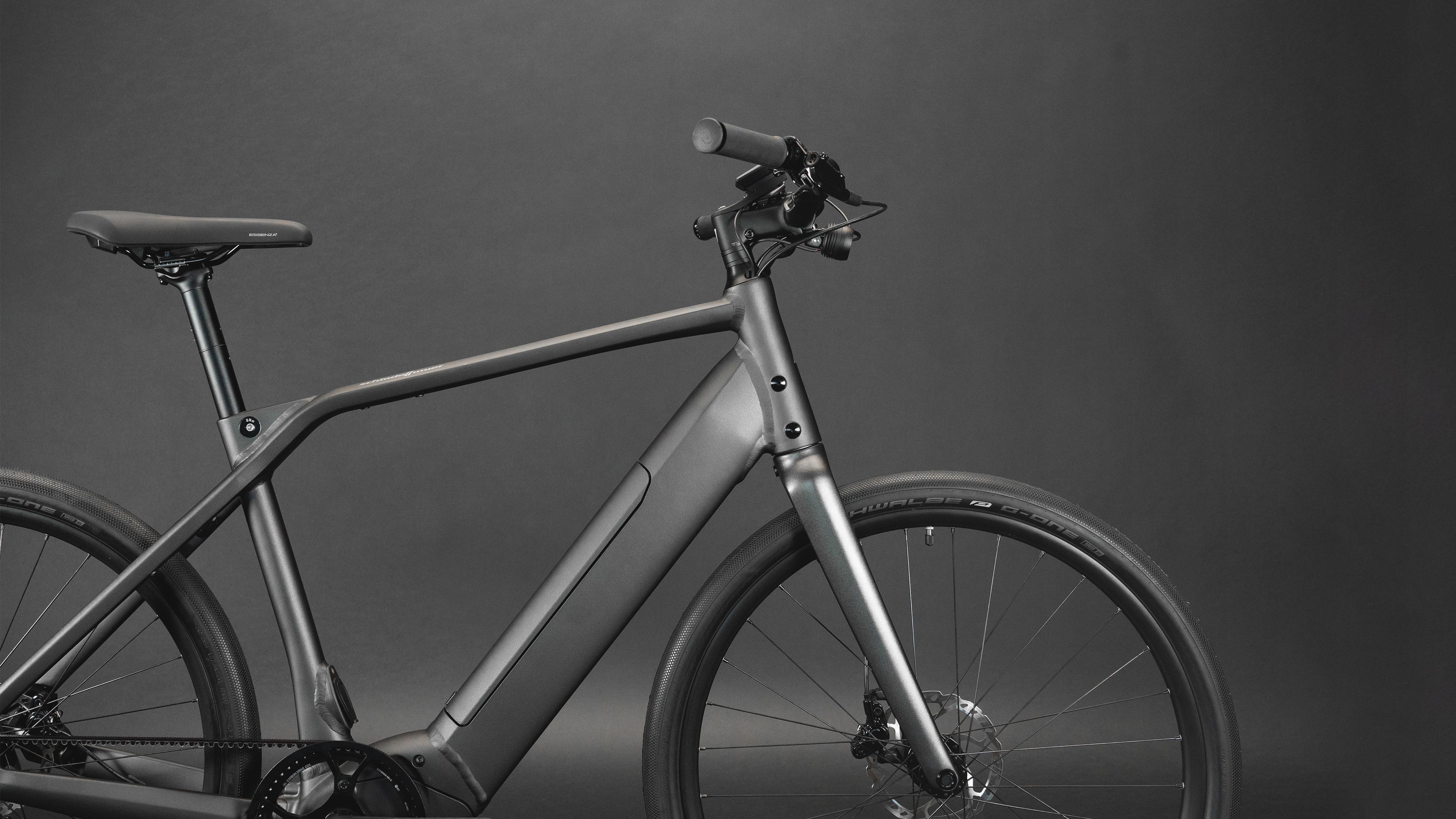

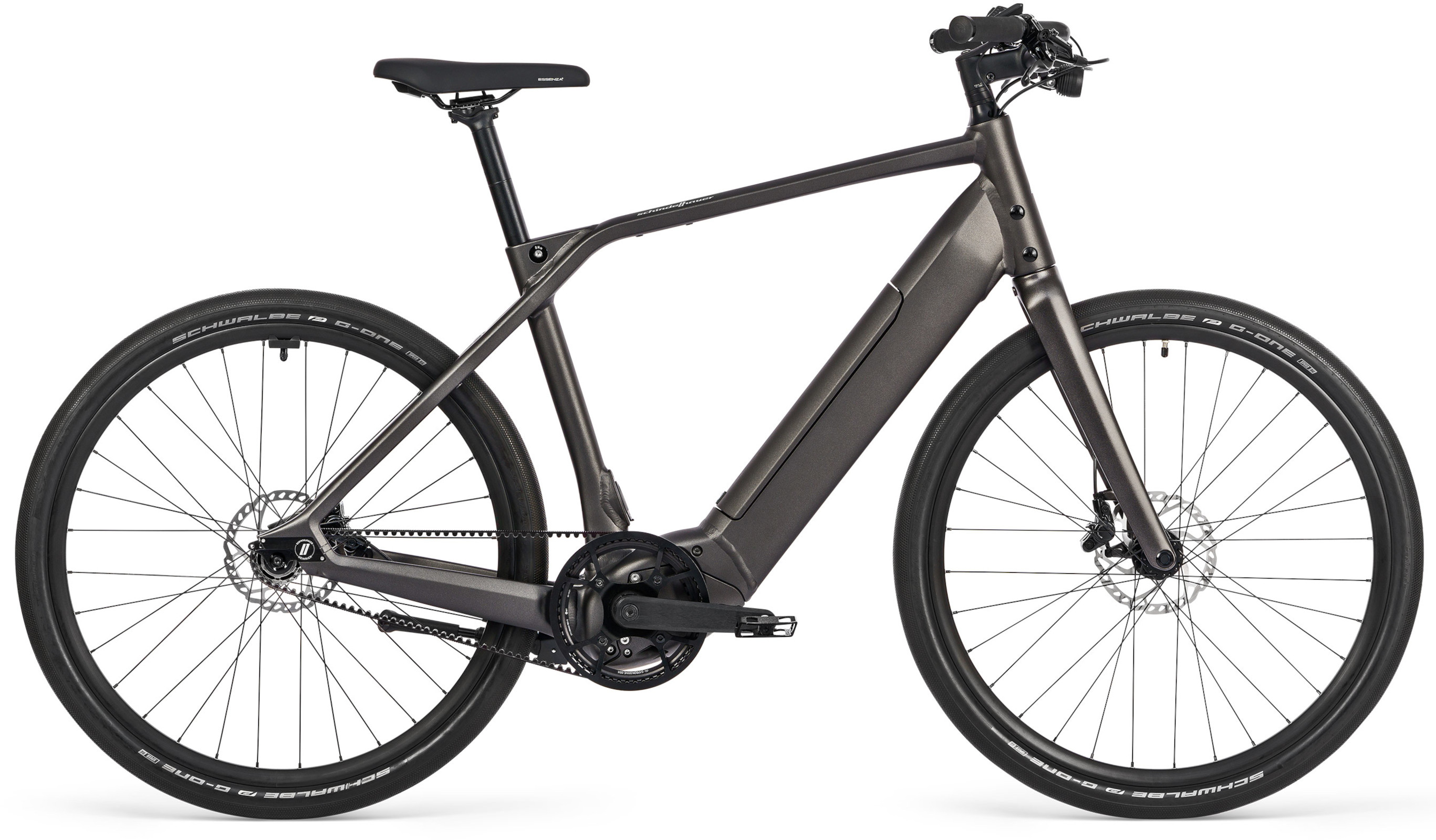

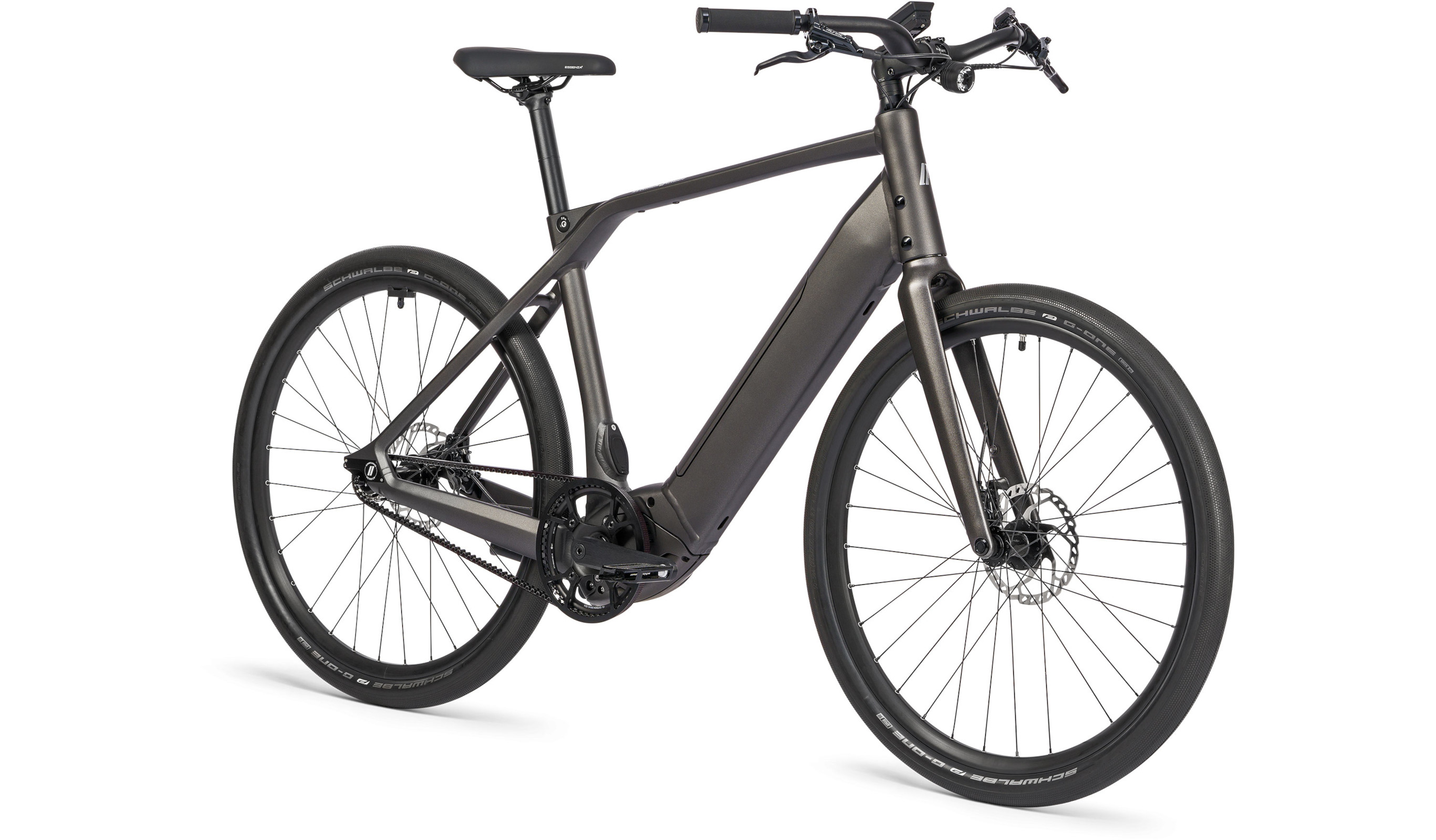

As a single-speed bike, Heinrich does not need gears, as this is impressively compensated for by the powerful Bosch Performance Line CX (85 Nm) motor, complete with a 500 Wh Bosch battery. With the maintenance-free carbon belt drive, you can reliably transfer the full power. This city e-bike has a Supernova lighting system, fully integrated into the handlebars and seat post.
As with all Schindelhauer models, the complex in-house development of the frame guarantees sporty cornering behaviour – something you would not expect from an e-bike with a mid-drive motor. The drive unit and battery are integrated as compactly and elegantly as possible without compromising on functionality or stability.
Connect your smartphone to the smart system from Bosch to customise riding dynamics, create your own profiles and install over-the-air updates, for example. You can optionally equip Heinrich with ConnectModule so that your bike is protected against theft via GPS tracking.
Heinrich has a Supernova lighting system, impresses with crisp support, low-maintenance components and a clean look. You can also ride Heinrich with the motor switched off without any problems, and we also offer optional accessories for luggage and all weather conditions. You can rely on Heinrich in any situation.

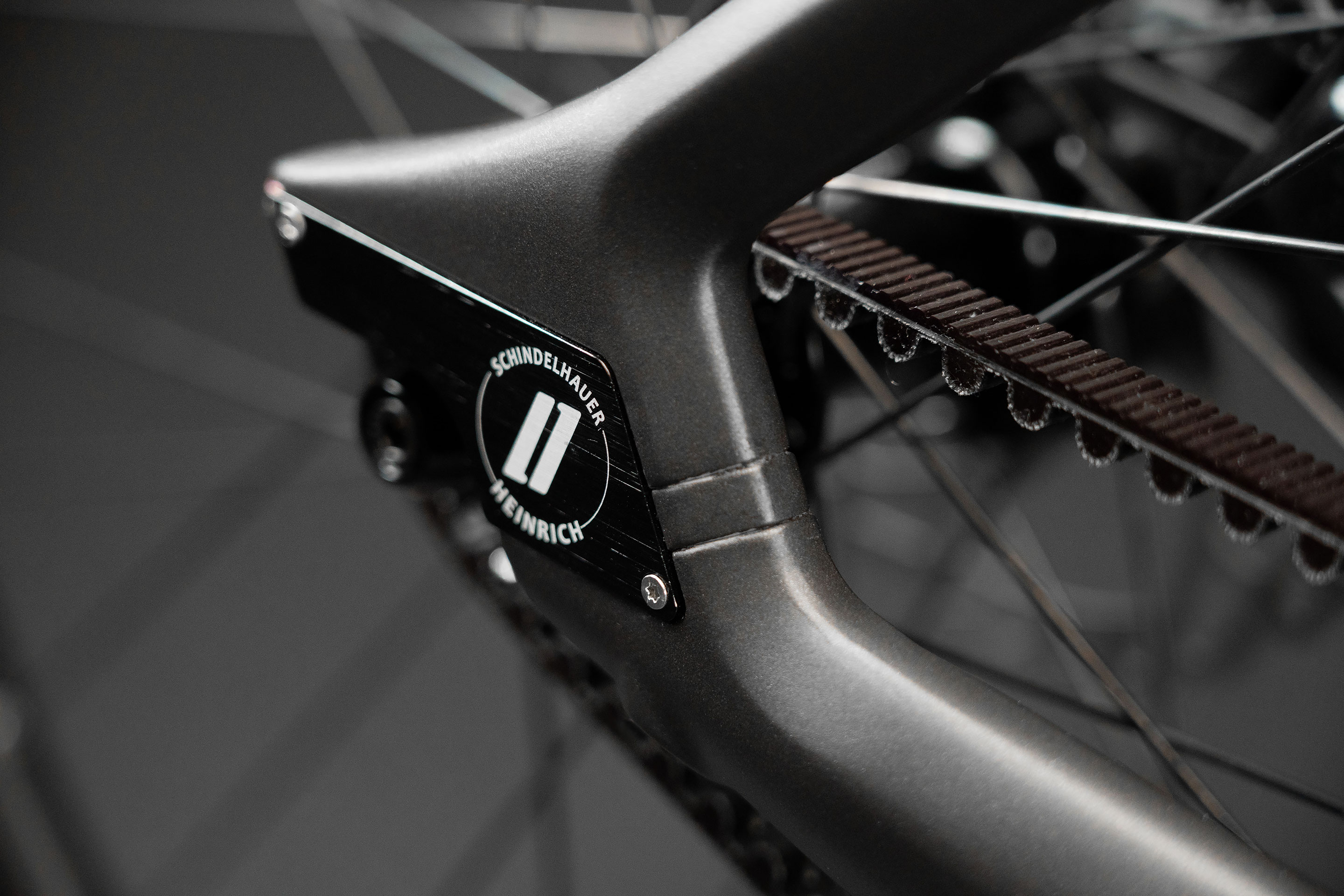

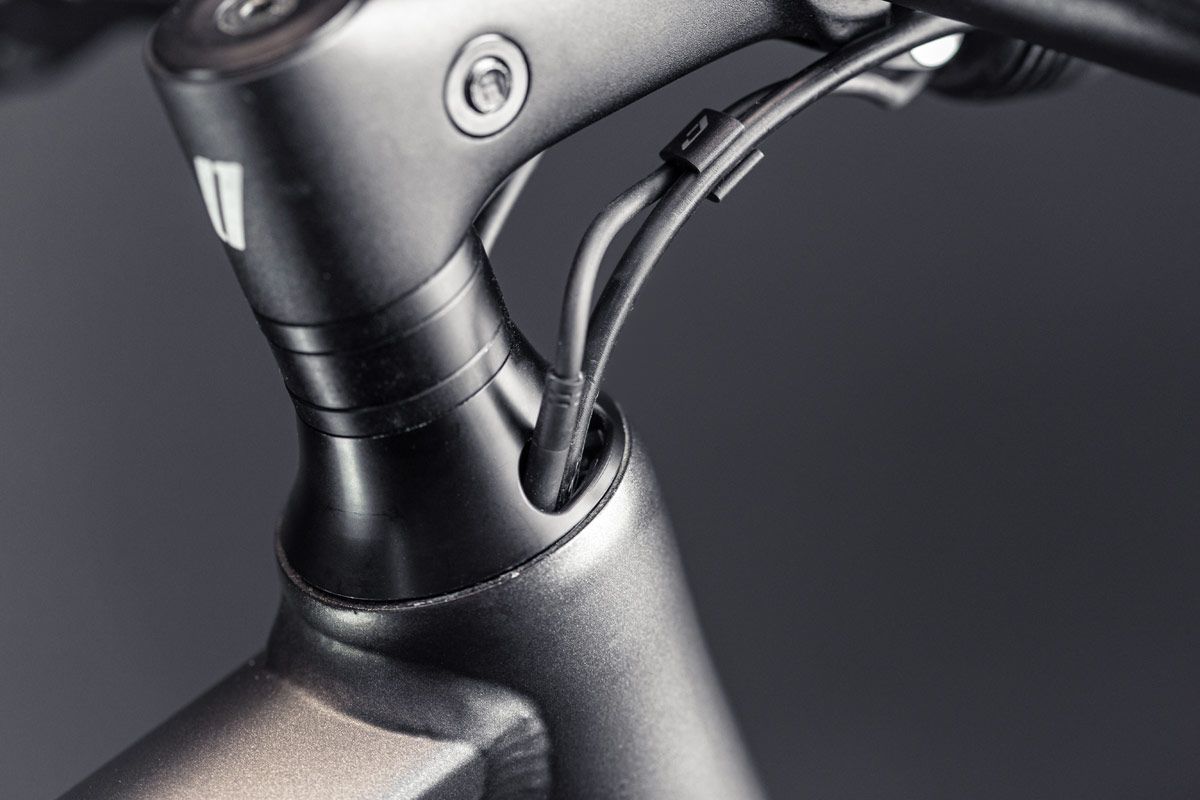

| frame | Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty |
| fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| headset | Acros - ICR 1,5'' |

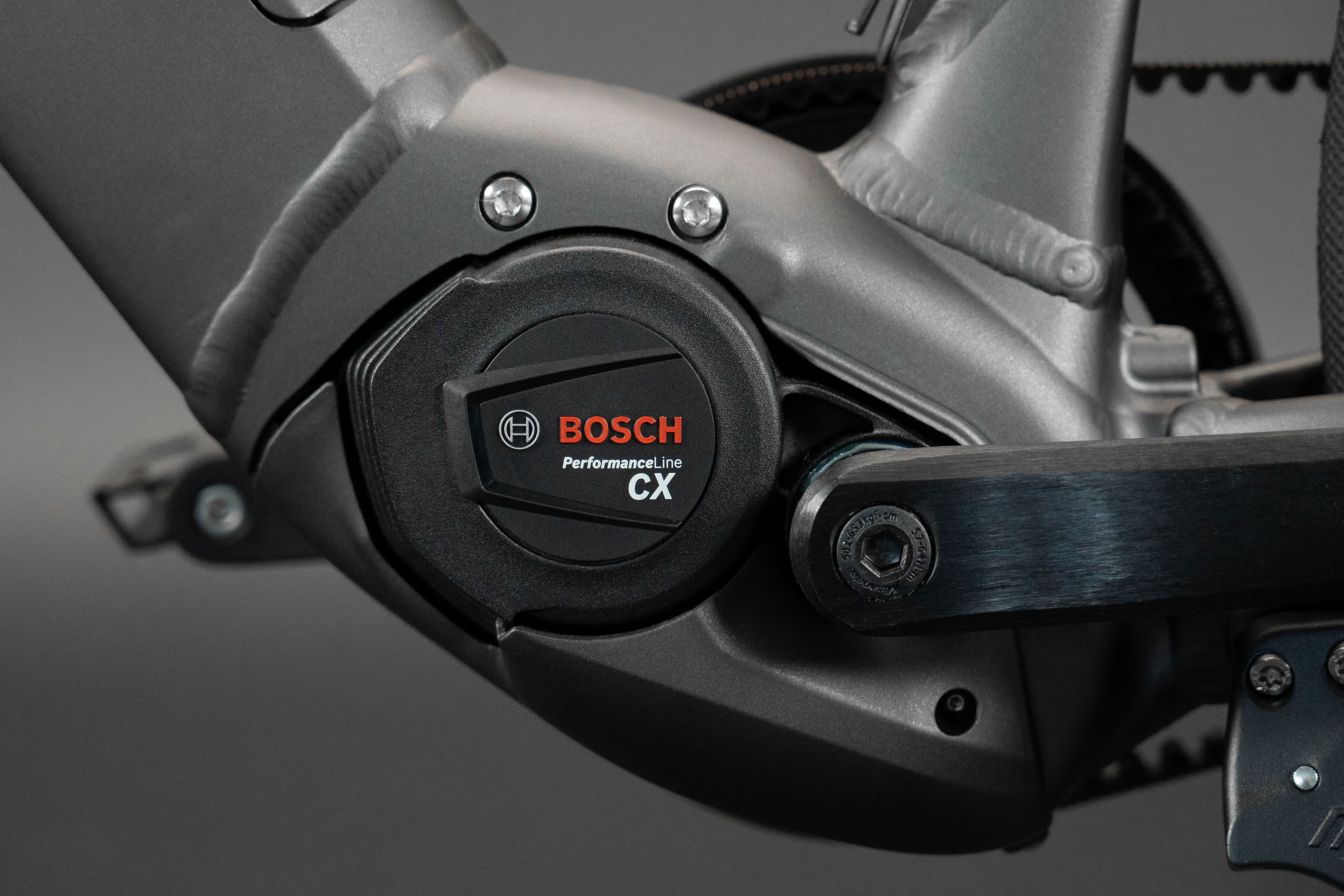

| motor | Bosch Smart System – Performance CX, power: 250 W, torque: 85 Nm, max. support up to 25 km/h |
| battery | Bosch - Powertube 500, intube battery, energy: 500 Wh |
| display | BOSCH - KIOX, LED-Remote |
| power transmission | Gates Carbon Drive - CDX, front 55T, rear 20T, belt 120T |
| gear shift | - |
| crank set | Miranda - Delta |
| pedals | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| stem | Satori - Stealth, aluminium |
| handlebar | Satori - Noirette aluminium |
| saddle | Selle Royal - Essenza Plus Athletics |

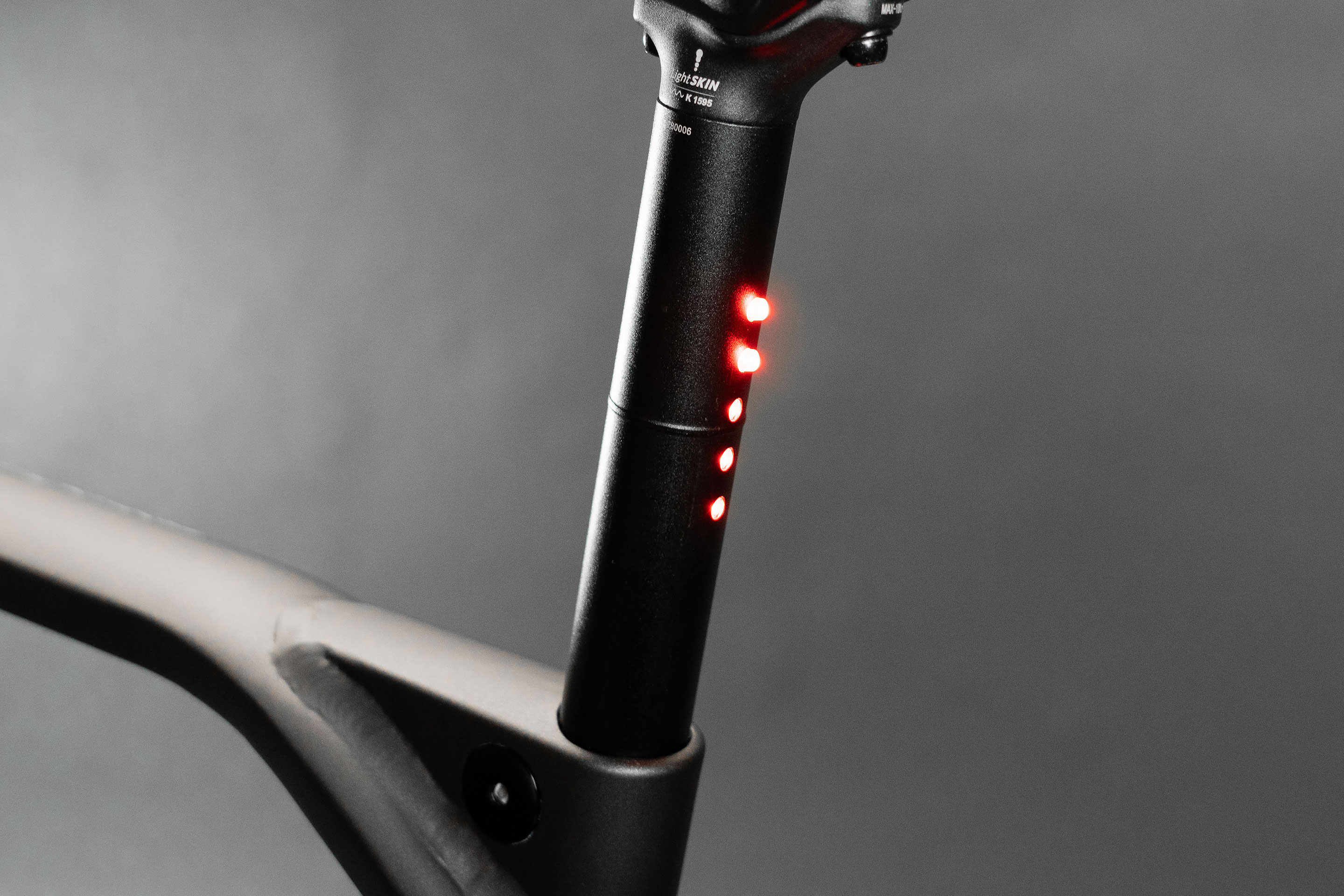

| seatpost | LightSKIN - seat post integrated LED-rear-light |
| grips | Schindelhauer (bolt-on) |
| wheels | Schindelhauer - high flange front hub disc, Schindelhauer - rear hub disc, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross laced |
| brakes | Shimano - Alfine S7000 disc brake (hydraulic), 160mm |
| tyres | WTB - Horizon 47-584, with reflex stripes |
| weight | 19.7 kg (size M) |
| max. total weight | 155 kg (bike + rider + luggage) |
| mudguards | Mudguard mounting possible |
| pannier rack | Front rack mounting possible |

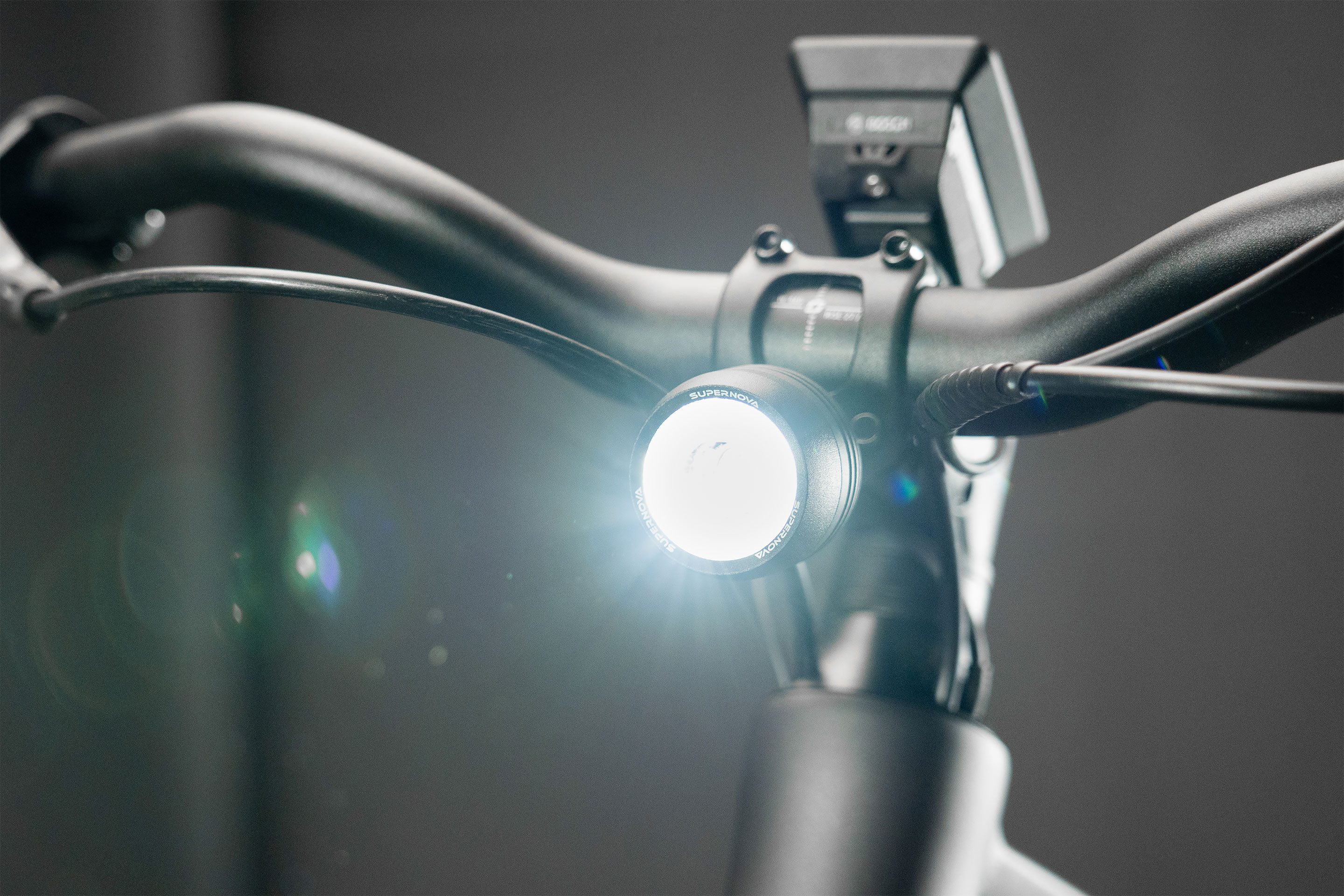

| lighting | Supernova - Mini 2 front light, seatpost with integrated LED-rear-light |
| additional features | BOSCH ConnectModul ready, Hebie – side stand 663 FIX18, lock holster mounting possible, frame lock mounting possible, attaching a child seat onto the seat tube is possible but will cover up the rear light (LightSKIN LED seat post). |
All information is supplied by the manufacturer and is not guaranteed! In rare cases there may be subsequent changes to the specification.
